Sunday, 30 October 2011

Avanza’s 4th Battery

Used the car on Saturday morning, but failed to start in the same evening when we want to drive out for dinner. I got the following replacement.

Panasonic MF

The translucent shell on the MF battery allows us to check water level.. too bad no ready stock for NS40, had to settle for this NS60 replacement.

Age of car: 6 years 4 months

Mileage: 167,000km

Sunday, 16 October 2011

Some useful Youtube collection

1. BMW Front Brake Rotor Replacement

2. BMW M52/M54 6-cylinder Valve Cover Gasket Replacement

3. BMW Power Steering Fluid and Filter Reservoir Replacement.

Will update when discover new useful clips.

Monday, 10 October 2011

Avanza: DIY Squeaky Drum Brake / Brake Dust Cleaning

I just found this in my archive. It is a procedure to clean our rear brake dust because when it cumulates, it created squeaky noise. This job was done in October 2010.

Tools needed:

1) Wheel opener

2) Size 12 bolt

3) Brush

4) Size 12 wrench

5) Car jack

6) Rubber hammer

Loosen (not remove!) the wheel lug, jack up the rear, remove the wheel, use the size 12 bolt to screw in for pushing the hub cover out

Hint: Secure the all 3 others wheels from rolling because to perform this, you must release the parking/hand brake. If not, the parking brake will grab on tight to the hub cover and you wouldn’t be able to remove the hub cover. This is not a front wheel drive vehicle, so the front wheel will roll freely if we lift the rear.

The rubber hammer is to knock the hub to loosen it while screwing in with the size 12 bolt.


This is how the rear brake internal looks like. You can clearly see the rear brake shoe still appears to be very thick. This is at above 100k km. Original 6 years old brake shoe, never replace before.


This is a close up of my humble tools. Smile Check out the hub cover on the left, there a tiny hole for the size 12 bolt to screw in, that’s how we force the hub cover out.


Check out the amount of dust I managed to dust out. Surprised smile


To  put the hub cover back, just put it back in and fasten the wheel.

Hint: Jack one rear wheel at a time because the other rear wheel needs to remain on the ground. The transmission selector set to ‘P’, the other rear wheel will help secure the car from rolling. Still, for extra precautionary measure, use objects like bricks to block both front wheels and the other rear wheel from rolling. When jacking, do it slowly and monitor the car for the slightest rolling if any. Can be potential safety hazard if this is not observed.

That’s all for now. Hope you enjoy my write up.. till next blog update, Adios! Smile

Sunday, 9 October 2011

Avanza: DIY Repair Transmission Mounting

A recent change of transmission fluid has led me to inspect the transmission mounting while I crawled under the car, and I’m suspecting it has cracked.

I also noticed an occasion knocking sound from the central cabin tunnel when going through bumps.

So I came across this epoxy adhesive which is perfect for the job.Smile

It has 3 types, 4min, 5min and 90min and each can withstand 3 tons, 3.5 tons and 4 tons respectively. I think 90 min is too long, hence I picked the 5 min variant. The entire car doesn’t even weight 3 tons.. Smile with tongue out


Going under the car again and yes, the black clean line is created due to rubbing, meaning there are movement between the top plate and the 2 rubber support blocks, which shouldn’t happen unless the section has cracked or broken.


This following photo is taken from the rear, notice the same black crack lines between the V-shape top plate and the 2 rubber blocks? Oh! That’s my pet taking her nap in the back ground.. Smile


Found a jack point, it’s at the flywheel housing, at the joint where the transmission is connected.


After jacking the transmission up, the gap between the top plate and the 2 rubber blocks are clear!! Surprised smile


Since the gap is not wide enough for me to apply the epoxy adhesive, I had to remove the mounting. 2 size 14mm bolts at the top and 2 size 14mm nuts at the bottom, to be accessed through the bottom cross beam. Look at the following picture after ripping off the 2 sections.. Surprised smile The 2 sections are supposed to be moulded together.


Here goes nothing.. mix the epoxy with the hardener.. the mix is actually hot, an increase in temperature due to the chemical reaction.


I only apply one side, the top plate. Then slide the top plate over the rubber blocks.. I need to act swift because I only have 5 min before the epoxy harden even though it takes hours to fully cure.


Installing the transmission mounting back to it’s original location.. Hint: Put in the top bolts first before tightening the bottom nuts because the top bolts do not have free play while the bottom has.

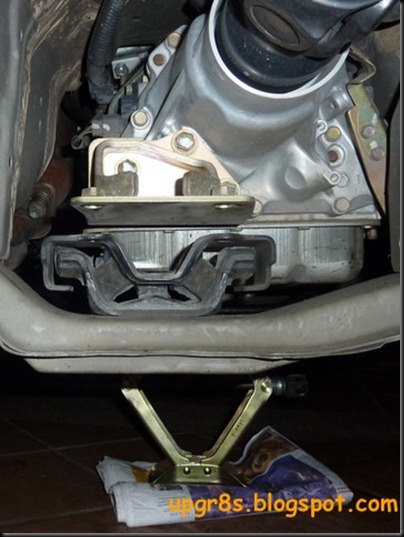

Slowly lower the jack..

Hint: I lay some old newspaper under the jack to distribute the weight because I worry I might crack my tiles.


Viola! Smile


I think the past 7 years, 160k km of flying over speed bumps and uneven road have finally taken a toll on the transmission mounting.. but fear not, after tonight, flying continues.. !!! Smile with tongue out

Thank you for reading. Comments are welcome! Winking smile

Friday, 7 October 2011

Avanza: DIY Power Steering Fluid Replacement

Hand wash pump, stick it into the power steering reservoir and pump. Be careful not to pierce the strainer inside the reservoir. This is not a perfect method because:

1. The insert of the hand pump too hard, can damage the metal strainer netting in the reservoir.

2. The hand pump suction is not powerful enough to siphon out debris in the reservoir. After I siphoned out the fluid, a peek with a torch light revealed that there’s debris inside the reservoir.

The next time I do this, you should see some improvement to my method.


Check out the fluid color. On the left is from my 1 day old partial drained transmission fluid, taken out due to overfilled. On the right, is the one taken out from my power steering reservoir. Dirty eh?!

Still the power steering fluid appear less dark comparing to the transmission fluid. Planning for a full drain in 20k km time. Stay tuned!

The 3L partial drain of transmission fluid is really hopeless!


Thank you for reading.. Winking smile

Comment appreciated.
